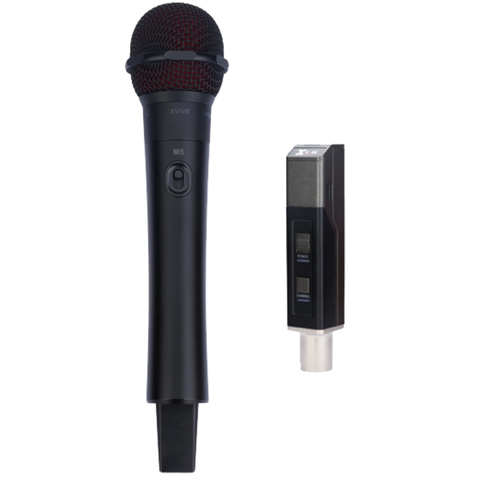

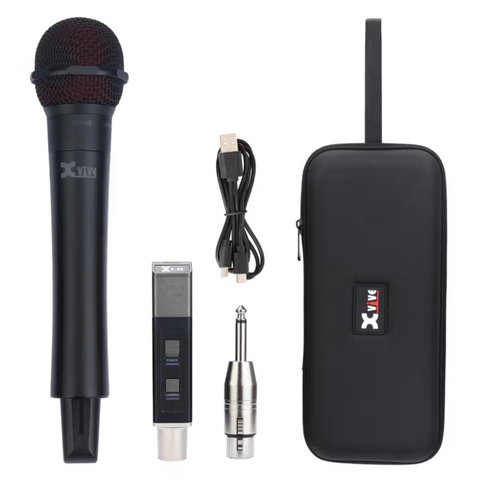

The M5 System includes a high-quality dynamic Microphone/Transmitter and a wireless Receiver
Stable wireless broadcast on the 5.8 GHz band with high-fidelity 24-bit/48 kHz audio and very low latency
7 wireless channels to choose from, including the default Auto mode and six fixed-frequency channels
The mic head can be swapped out with mic heads from other brands, including Shure®, Electro-Voice®, Heil Sound®, Telefunken®, Lectrosonics®, Lewitt® and Austrian Audio®
Microphone signal can be sent to multiple M5 Receivers
Up to six M5 Systems can be used simultaneously in one location on fixed-frequency channels, and/or up to five M5 systems on Auto Mode

CAPSULE COMPATIBILITY

The M5 handheld Transmitter is compatible with the following Microphone Heads:

Shure®: Beta58A, Beta87A, Beta87C, KSM8, KSM9, KSM9HS, PG58, SM58, SM86, SM87A
Electro-Voice®: RC2-767, RC2-967, RC2-PL80a, RC2-410, RC2-510, RE420-RC3, RE520-RC3
Heil Sound®: RC22, RC35
Telefunken®: M80WH, M81WH
Lectrosonics®: HHC, HHVMC
Lewitt®: W9
Austrian Audio®: OD505 WL1, OC707 WL1
sE Electronics®: V7 MC1, V7 MC2

Specifications


WIRELESS TYPE	5.8 GHz ISM worldwide open band
BIT DEPTH/SAMPLE RATE	24-bit / 48 kHz
SWITCHABLE CHANNELS	7 (Auto Mode + 6 fixed-frequency channels)
FREQUENCY RESPONSE	20 Hz – 20 kHz
DYNAMIC RANGE	110 dB
LATENCY	<5 ms
OPERATING RANGE	30.5 m / 100 ft (line-of-sight)
BATTERY TYPE	Onboard lithium-ion, USB-rechargeable
BATTERY LIFE	12 hrs (Transmitter), 10 hrs (Receiver),
CHARGING TIME	4.5 hrs (Transmitter), 3.5 hrs (Receiver)

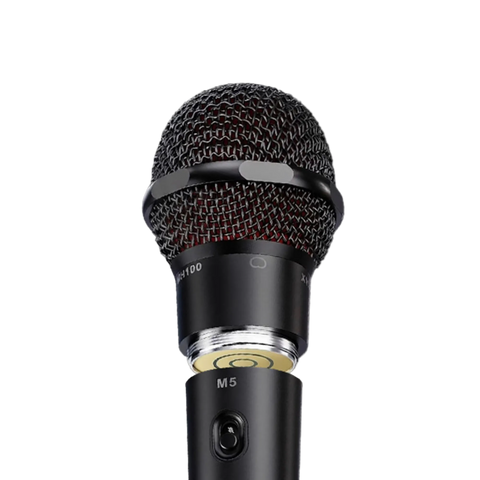

Xvive M5 wireless Microphone System
