The M80 has become a staple in live sound reinforcement and studio recording. Its wide frequency response, condenser-like performance, and high SPL capabilities allow the M80 to capture the full range of any sound source, making it a reliable first choice for many sources including lead vocals and snare drum. Featuring a custom-wound impedance-matching transformer, its unmatched performance is mated with intelligent internal construction to provide low handling noise. Hand-assembled in the USA, the M80’s rugged build quality is designed to withstand the wear and tear of the road.

Features

Condenser-like high frequency extension cuts through dense mixes
Detailed sound with high SPL handling, perfect for studio and stage
Supercardioid polar pattern provides excellent feedback rejection
Available in multiple colors and finishes through the Custom Shop
Designed and hand assembled in the USA
Recommended Applications: Lead Vocals, Snare Drum, Brass Instruments

Technical Specifications

Type: Dynamic
Polar Pattern: Supercardioid
Frequency Range: 50 Hz – 18 kHz, ±3 dB
Capsule: 25mm Dynamic Moving Coil
Transformer: TELEFUNKEN Elektroakustik T80
Sensitivity: 1.54 mV/Pa, ±1 dB
Output Impedance: 325 Ω
Maximum SPL (for 1% THD): 135 dB
Dimensions/Size: 184 mm L x 48 mm Dia
Weight: 430 g
Included Accessories: Mic Clip, Zipper Bag

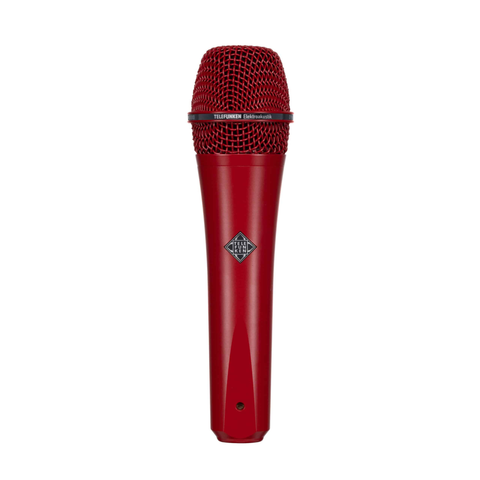

Telefunken M80 (red)
