5 Total Channels
1 Mic/Line channel with noiseless preamp, combo connector, Hi-Z input for guitars, +48V Phantom Power, Peak Indicator
1 Stereo Line Channel with ¼” Jack inputs, +4/-10dB Pad Adapter and Peak Indicator
1 Stereo Line Channel with RCA and 1/8” Stereo Mini-Jack
2-Band EQ on channels from 1 to 3
Digital Echo Effect with Repetition, Delay and Level adjustment
Headphone monitor out with level control
XLR Main Outputs with Master Level Control
Stereo 6-Led VU Meter Bar
Rugged and Lightweight Metal Case for Maximum Flexibility and Portability
Less Key features

Input Connections

Balanced XLR/Jack Combo (Channel 1). Balanced ¼” Jack (Channel 2-3). Stereo RCA, Stereo 1/8” Mini-Jack (Channel 4-5)
Output Connection

Balanced XLR (Main Out L-R). Stereo ¼” Jack (Phones)
Channel 1 Functions

+48V Phantom Power, Impedance switch (Line/Hi-Z), 2-Band EQ (80Hz/12kHz +/-15dB), Effect Send Level, Pan Position, Channel Volume, Peak Led Indicator
Channel 2-3 Functions

Impedance switch (+4/-10dB), 2-Band EQ (80Hz/12kHz +/-15dB), Effect Send Level, Pan Position, Channel Volume, Peak Led Indicator
Channel 4-5 Functions

Pan Position, Channel Volume
Effect Functions

Echo Repetition Adjustment, Echo Delay Time Adjustment, Echo Level Adjustment
Level Meter

2x6 LED Meter
Max Output Level

3 Vrms
Frequency Response

+/-0.5dB, 20Hz-20kHz
Dynamic Range

102dB
THD+N @ 1kHz

=0.003%
Stereo Crosstalk

92dB
Power Requirements

DC 5V, 1A
Power Consumption

Max. 2.5W
Product Size

138 x 165 x 66 mm

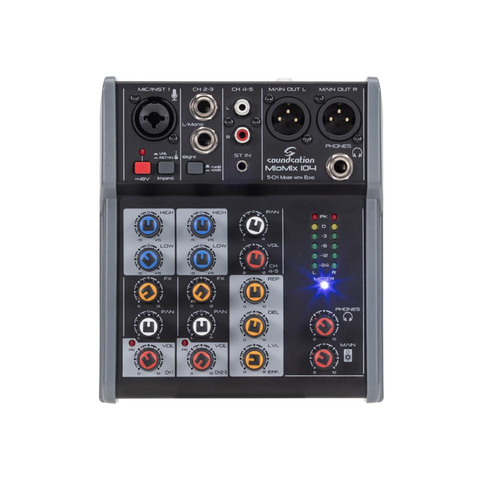

Soundsation MIOMIX 104 5-Channel Professional Audio Mixer with Digital Echo Effect
