5.8 GHz guitar wireless system with A58 Transmitter and P58 Receiver / Tuner Pedal
True Diversity Receiver with integrated chromatic tuner
The transmitter has up to 5 hours of battery life
Compatible with active and passive pickups
The receiver scans for wireless status and selects the best channel
High-resolution 24-bit / 48 kHz audio
12V DC power adapter included for receiver/tuner
For guitar, bass, and other musical instruments with a 1/4″ output
Toggle the switch on the receiver for either True Bypass or Buffered Bypass
Wireless range: up to 100 ft
USB charging outlet on the Receiver for charging the Transmitter

Specifications


WIRELESS TYPE	5.8 GHz
BIT DEPTH/SAMPLE RATE	24-bit / 48 kHz
SWITCHABLE CHANNELS	6
SIMULTANEOUS CHANNELS	6
FREQUENCY RESPONSE	20 Hz – 20 kHz (-3dB)
DYNAMIC RANGE	110 dB
SIGNAL-TO-NOISE RATIO	110 dB
TOTAL HARMONIC DISTORTION	0.2%
LATENCY	5 ms
OPERATING RANGE	30.48 m / 100 ft (line-of-sight)

TRANSMITTER
CONNECTOR	1/4" TS
DIMENSIONS	65 mm / 37 mm / 28 mm
WEIGHT	45 g / 1.59 oz
BATTERY LIFE	Up to 5 hours
CHARGING VOLTAGE/CURRENT	5V / 500 mA

RECEIVER/TUNER
CONNECTOR	1/4" TS
DIMENSIONS	75 mm x 115 mm x 48 mm
WEIGHT	390 g / 13.76 oz
MODES	True Bypass / Buffered Bypass
DEFAULT REFERENCE PITCH	A-440 Hz

BATTERY
TYPE	Rechargeable Lithium-ion (internal)
BATTERY LIFE	5 hours
CHARGING TIME	2 hrs (full charge)
CHARGING VOLTAGE	5V (USB)
USABLE WHILE CHARGING	Yes

THE SYSTEM

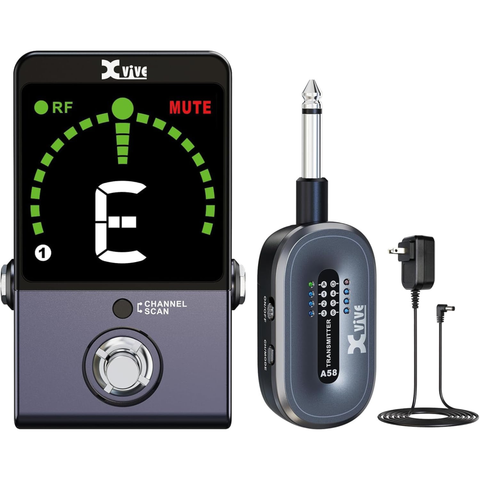

The P58 system is comprised of a Transmitter, which connects to your audio source (typically an electric guitar or bass), and a combination Receiver / Tuner Pedal, which can be in the first position of your pedalboard, or can be placed alone between your instrument and your amp or sound interface. A 12V power supply for the Receiver/Tuner is also included.

TRUE OR BUFFERED BYPASS

The P58R Receiver/Tuner features a switch that allows you to choose either True Bypass mode or Buffered Bypass mode. Buffered Bypass is a good choice if you use long cables and/or a lot of pedals between the A58 Receiver and your amp. If you want tonal purity and have a smaller setup, True Bypass is the way to go.

ACTIVE OR PASSIVE

The A58T Transmitter has a Mode switch that allows you to toggle between Active and Passive modes. If your guitar or bass has passive pickups, choose Passive mode. If you have active or high-output pickups, the Active mode applies a -10 dB pad to the Transmitter’s signal, preventing unwanted distortion and clipping and giving you a better-quality signal.

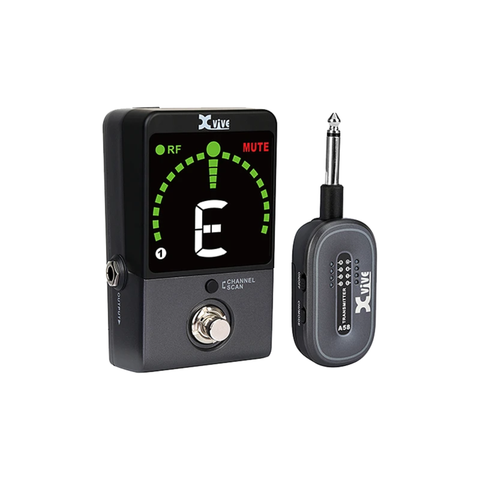

xvive P58 Guitar Wireless System
