Voice List

Soprano Recorder
Hulusi
TenorSax
Alto Sax
Soprano Sax
Bamboo Flute
Flute
Clarinet
Trumpet
Suona

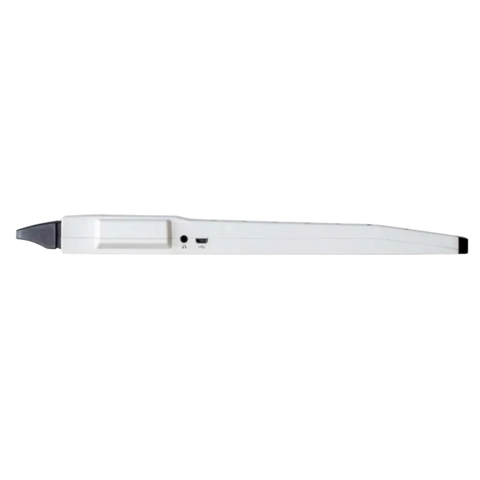

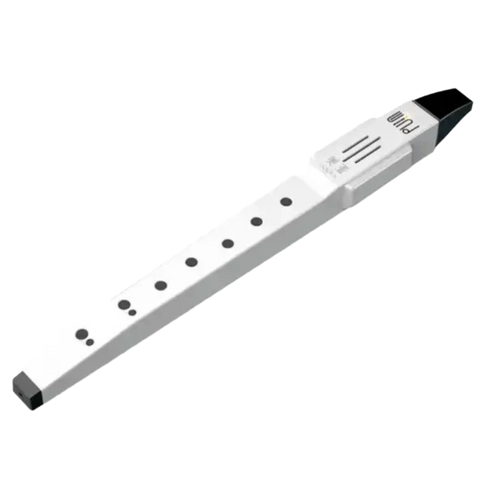

Panel Descriptions

MiDiPLUS Electric Wind Instrument 1

Quick Start

Please place the included removable silicone mouthpiece over the Wind’s mouthpiece.
Hold the Power button to turn on the power.
If you want to connect headphones or an external speaker, please connect them to the Headphone output; then, the built-in speaker will be muted.(Note: Always turn off speaker power before connecting external speakers.)
Put your fingers on the Wind as below, and then you are ready to play, for more fingerings, please refer to the “Fingering Chart”.

MiDiPLUS Electric Wind Instrument 4

Settings

Voice Selection
Press the “V” button, then use the Previous/ Next buttons to select the voice between 1 to 10, the default is 1.
Breath Sensitivity Setting
Press the “B” button, then use the Previous/ Next buttons to select the breath sensitivity between 1 (Light), 2 (Normal), and 3 (Heavy), the default is 2.
Fingering Chart Selection
Press the “F” button, then use the Previous/ Next buttons to select the Fingering chart between E (Electric Wind Instrument), d (Dizi), 5 (Simple), and r (Recorder). The default is E.
Transpose Setting
Press the “T” button, then use the Previous/ Next buttons to transpose between -12 and 12 semitones; the default is 0.
Volume Control
Press these “Volume” buttons to turn down or turn up the volume from Oto 10 levels, 10 is the maximum, the default is 5.
Restore to Factory Settings
When the power is off, press and hold the “V” button, and then long press the Power switch to turn on the power, when the display flashes “r ?•, the Wind has been restored to factory Settings.

MiDiPLUS Electric Wind Instrument 5

LED Status
LED Lit: Wind is powered on or the battery is fully charged.
LED Blinking slowly: Charging.
LED Blinking quickly: The battery is low and will be powered off in 3 minutes.

Bluetooth MIDI
When the Wind is turned on, long press the “Bluetooth” button to enable/ disable Bluetooth, the Bluetooth button blinks slowly when Bluetooth is available, and lights up when Bluetooth is connected.
Note: This is a Bluetooth MIDI device, and cannot connect to Bluetooth headphones and Bluetooth speakers.

MiDiPLUS Electric Wind Instrument 6
