The Routist R2 is a 1-In/2-Out USB Audio Interface capable of supplying 48V phantom power to your condenser microphone with only the USB bus power supply.

1-In/2-Out Audio Interface

You can connect to your mobile phone through the built-in OTG port, providing you with a faster and more convenient live streaming experience.

24 bit/96 Khz Support

The Routist R2 supports Windows low-latency ASIO driver and will work straight away without needing to install any drivers on Mac OS.

XLR/TRS Input

1 XLR/TRS Combo Input for microphone, line-level device, or instrument (guitars, keyboards, or basses).

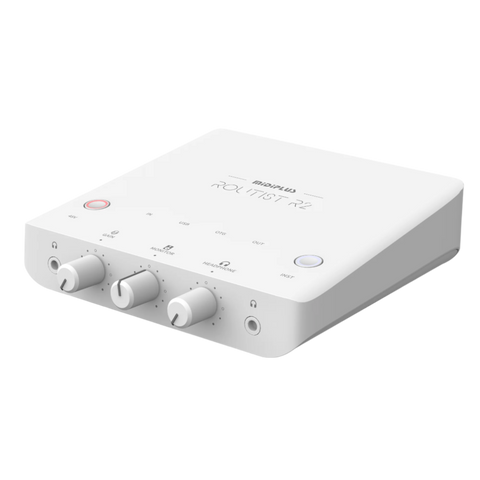

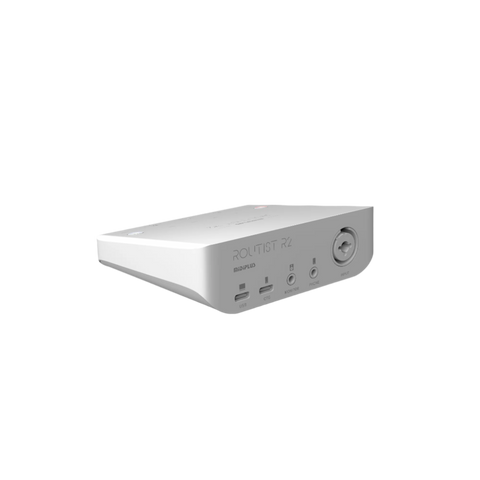

Hardware Features

USB port: Connect to a computer to transmit data and power supply.
OTG port: Connect to a mobile phone to transmit digital audio signals.
Monitor: Connect to the active speakers to monitor the output signals.
Phone: Connect to headset jack of mobile phone, for transmit analog audio signals.
XLR/TRS Combo Input: Connect the microphone through XLR, connect line-level device or instrument(guitars or basses) through TRS jack.
48V Switch: Turn on/off the phantom power supply of the XLR input, the button light is on when it is turned on.
Instrument/Line Switch: When the button lights on, the TRS input can be connected to an instrument such as an electric guitar, and when off, it is a line-level input.
Input Level LED: Indicate the XLR/TRS input level in different colors, lights red when clipping.
USB Status LED: Lights on when connected to the computer.
OTG Status LED: Lights on when connected to the mobile phone.
Output Level LED: Indicate the output level in different colors, lights red when clipping.
Headphone Outputs: Connect2 headphone
Input Gain Control: Control the XLR/TRS input’s gain level
Monitor Control: Control the monitor output level.
Headphone Control: Control the dual headphone outputs level.

Start Using

Connect
Connect the Routist R2 to computer by using the included USB A to USB C cable, the USB status LED on Routist R2 will light on.
Installation
Windows: Go to http://www.midiplus.com/support.aspx?id=l download and install the latest driver. macOS: No need to install any drivers.
Setting the default sound device
Windows: Go to Settings> System> Sound and then selecting the Routist R2 as your device for Input and Output. macOS: Go to System Preferences> Sound and then selecting the Routist R2 as your device for Input and Output.
Connection Example

Specifications

Model	Routist R2
Bit depth /Sample rate	24bit/ 9 kHz
I/O	1 x XLR/TRS Combo Input, 1 x 1/8″ Phone Jack, 2 x 1/8″ Headphone Outputs, 1 x 1/8″ Monitor Output, 1 x USB C port, 1 x USB C OTG port
Phantom Power	48V
Buttons	48V Switch, Instrument Switch
Knobs	Gain, Monitor, Headphone
Dimensions	5.03 × 4.80 × 1.49(inch)
Accessory	Quick Start Guide, TRRS 1/8″ to TRRS 1/8″ cable, USB A to USB C cable
