Product Features

Superior performance, high power output, and exceptional accuracy are the outstanding features of the MI3S.
3-inch active monitors with the rear inverted tube, bookshelf speaker designed, and built-in Bluetooth.
Volume control ranges from -30dB ~ 0dB
-2dB ~ +1dB,4 Level High frequency adjustment
RCA input, AUX input, and Bluetooth audio

Volume Control

“VOLUME” knob in the rear panel controls the volume from -30dB ~ 0dB, factory default is -30 dB. Counterclockwise to turn down the volume, and clockwise to turn up the volume.

High Frequency adjustment

“HF LEVEL” in the rear panel, the toggle switch with 4 positions is for High-frequency adjustment, turning range: -2dB, -1dB, 0dB, +1dB; Factory default is 0 dB.

Audio Inputs

RCA (Unbalanced) input, Aux input, Bluetooth (The default PIN is 0000)

The Right Speaker connector

TO RIGHT SPEAKER: Connect to the Right speaker through the included speaker cable.

Power Supply

Power input: 100-220V~,50/60Hz, 60W. The power switch is located under the rear panel, please refer to the power mark in the rear panel.

Notes

Do not open or remove the rear panel of the device to avoid electric shock.
Do not trample, squeeze, or break the power cord to ensure safety.
Do not place any liquid-filled utensils, such as vases, on the equipment.
Do not place any open flame on the device, such as candles.
Do not use the device in thunderstorm weather to avoid lightning damage.
Do not contact the device with water or moisture. Do not be exposed to rain or water splashing, to prevent short circuit hazards caused by water inflow.
Do not use the device near any heat source, such as the electric heater, electric blanket, or other equipment that generates heat.
Please place the equipment in a well-ventilated and dry environment for use.
When not in use for a long time, please unplug the power cord plug from the power socket.
Long-term use of excessive volume may cause permanent hearing damage, please pay attention to protect your hearing.
If the equipment needs to be transported, it is recommended to use the original packaging carton, in order to protect the box more effectively.
The equipment uses a switching device as a disconnecting device and should be kept easy to operate.
The equipment is only suitable for use in areas below 2000m above sea level. The equipment is only suitable for safe use in non-tropical climate conditions.

Product specifications

Contents	MI3S
FType ency requ	2-Way Active Monitor
response(-3dB)	70Hz-25kHz
Max SPL@1m	98dB
HF driver	3/4”silk-dome
LF driver	3”ﬁberglass woven cone
Frequency points	2.0kHz
Ampliﬁer type	Class-D
Ampliﬁer qty	4



T(1otpaalior)output power High frequency	80W(Peak)，60W(RMS)
adjustment	-2dB, -1dB, 0dB, 1dB@2.5khz above
Jack	12/x8”RsCteArUnbinaplauntced input 4-pin speaker output Bluetooth v4.0，
Bluetooth	Compatible with A2DP protocol
Dimensions(mm)	152 x 119 x 165
Net weights(kg)	3.1kg (Main:1.77kg，Sub:1.33kg)

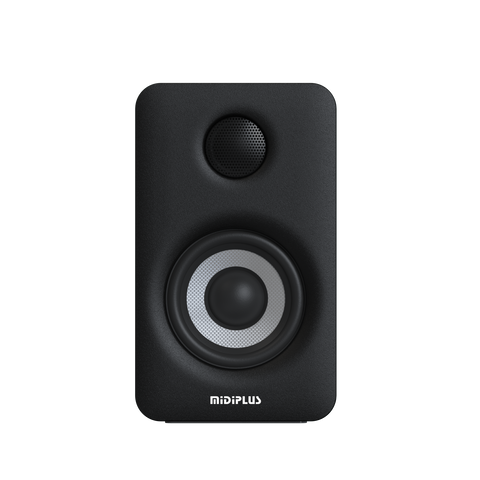

Midiplus MI3S
