USB-C audio interface
Autosetup for sensational sound with just a few clicks
Clipguard protects from distortion
Single-click Compressor and Denoiser
Three iconic preamp sounds
Touch-based and intuitive controls
Custom button for workflow shortcuts
Individual LED colors and brightness

Sensational sound with just a few clicks.

CONNECT 2 is the most user-friendly audio interface for musicians and content creators. It combines great usability, powerful features, and incredible specs.

Comes with CONTROL CENTER software and all the tools to make you sound sensational with just a few clicks.

Specifications

Device

Features: RGBW LEDs, MUTE, custom button, autogain, input / playback mix, gain reduction display, Kensington lock

Control: Capacitive touch

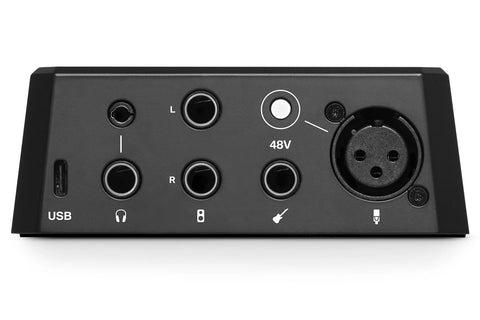

Inputs: 1x Microphone: balanced 3-pin XLR, 1x Instrument: Hi-Z 6.3 mm jack

Outputs: 2x Speaker: 6.3 mm balanced jack, 1x Headphone: 6.3 mm jack, 1x Headphone: 3.5 mm jack

Metering: 25 step high-resolution

Dimensions and weight: 151 x 110 x 41 mm, 394 g

Power requirements: USB bus-powered

Digital

Type: USB-C audio interface

Software: LEWITT CONTROL CENTER

DAW included: Steinberg Cubase LE, Cubasis LE

Compatibility: MacOS, Windows, iOS (plug and play with USB-C devices, devices with lightning connector require Camera Connection Kit and external bus power)

ASIO driver: Yes

Sample rate: 44.1 kHz, 48 kHz, 96 kHz

Bit rate: 24

USB Audio Class: 2.0

Signal flow: Input / playback mix

DSP powered: Yes

Loopback: Yes

Inputs / Outputs: 4 (includes 2 software channels) / 2

Streaming modes: macOS mode, mobile mode

Min. system requirements: Windows 10 (64 bits): 4 GB RAM minimum, USB 2.0 connector; macOS 10.15 and higher: 4 GB RAM minimum, USB 2.0 connector

Microphone Input

Features: DSP (low-cut filter, clipguard, preamp modes, denoise, compressor, autogain, autosetup)

Type: balanced

Connector: 3-pin XLR

Phantom power: 48 V

Gain range: 0 - 72 dB

Equivalent input noise: –129 dBV (A)

Dynamic range: 118 dB (A) - Without clipguard 118 dB (A)

Max input level: 15.8 dBV

Total harmonic distortion: 0.001%

Frequency response: 20 Hz - 20 kHz (± 0.1 dB)

Instrument Input

Features: DSP (low-cut filter, clipguard, preamp modes, denoise, compressor, autogain, autosetup)

Type: Hi-Z, differential ground loop break circuit

Connector: 6.3 mm jack

Gain range: 0 - 60 dB

Input impedance: 2.5 M Ω

Equivalent input noise: –108 dBV (A)

Dynamic range: 121 dB (A) - Without clipguard 105 dB (A)

Max input level: 12.5 dBV

Total harmonic distortion: 0.0008%

Frequency response: 20 Hz - 20 kHz (± 0.1 dB)

Speaker Output

Features: High volume speaker mode, Mute, Volume, Map system volume controls

Connector: 2x 6.3 mm jack, balanced

Frequency response: 20 Hz - 20 kHz (± 0.1 dB)

Max output level: 12.2 dBV (high volume mode)

Total harmonic distortion: 0.0023%

Impedance: 200Ω

Headphone Output

Features: High impedance headphone mode, Mute, Volume, Map system volume controls

Connector: 1x 6.3 mm jack, stereo, 1x 3.5 mm jack, stereo

Frequency response: 20 Hz - 20 kHz (± 0.2 dB)

Max output level: 6.8 dBV (high impedance mode)

Total harmonic distortion: 0.003%

Impedance: 1.9 Ω

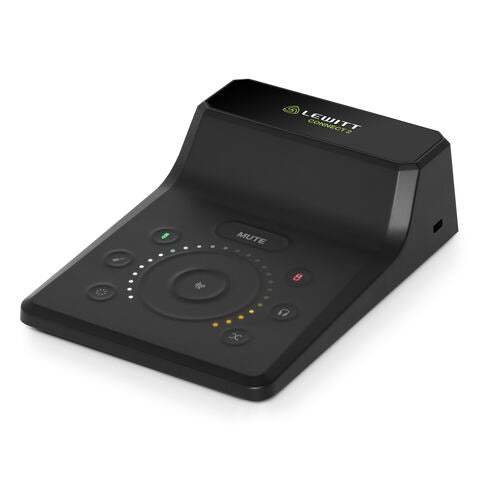

Lewitt CONNECT 2
