A TECHNOLOGICAL TRIUMPH

The UTOPIA MAIN range inherits over forty years of Focal know-how and twenty years of innovation in the development of studio monitors. Each component has been meticulously thought out to design exceptional main monitors, delivering a very high level of accuracy, even at high SPL.

Tech Specs:

Product type: 3-way monitor
Loudspeakers :
• Subwoofer: 13" Membrane W
• Woofer: 5" Membrane W en "M"
• Tweeter: 1.5" Béryllium en "M"
Frequency response (+/- 3dB): 28 Hz - 40 kHz
Maximum SPL (peak@1m):120 dB
Inputs: XLR symmetrical 10 kOhms
High frequency amplifier: 90 W RMS Class H Current Mode
Mid-range and low frequency amplifier: Bass: 500 W RMS Class D / Midrange: 180 W RMS Class H Current Mode
Indicators and controls :
Sensitivity
Auto standby
LED Logo on/off
HPF, LF Shelving, LF EQ, LMF EQ, HF Shelving
Subwoofer / Midrange / Tweeter trims
Soffit filter
Sealed port filter

ABSOLUTE PRECISION

The ‘M’-shape concept was introduced to both the all-new 5” midrange with a ‘W’-membrane and the 1.5” Beryllium tweeter for increased rigidity. The ‘M’ shape moving in and out in a perfect pistonic movement provides a strong planar waveform and gives a true “phantom” center. Those drivers deliver exceptional transient reproduction without causing hearing fatigue.

SIGNIFICANT BASS EXTENSION

The 13” long-excursion subwoofer offers excellent definition and significant extension in the sub-bass, an essential element for main monitors. Multiple simulations have been carried out to deliver ever more accurate bass, while attenuating port noise. The cabinet is made from MDF panels reinforced by a bracing network specially designed to eliminate any cabinet warping. The sound is deep, powerful, and sensational.

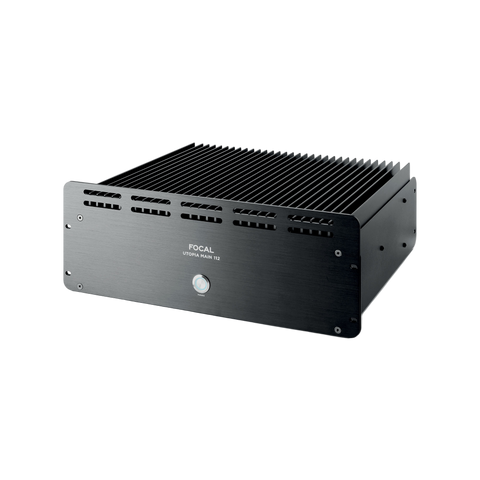

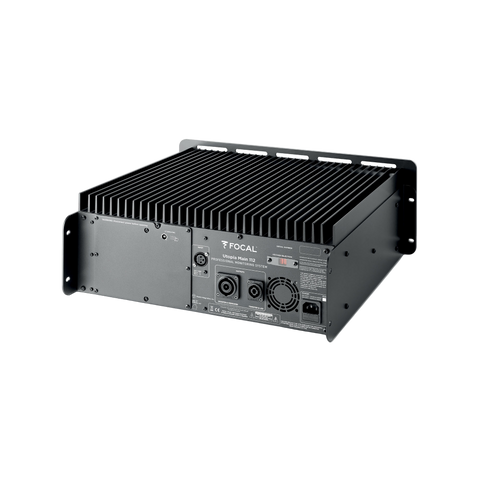

UNIQUE EXTERNAL AMPLIFICATION

The patented amplifiers of the UTOPIA MAIN 112 and UTOPIA MAIN 212 use a combination of a Class H design with current-mode amplification. Developed by Focal, these electronics offer the most natural and transparent amplification possible for loudspeakers. Combined with analogue filtering, it achieves the lowest level of harmonic distortion (THD) ever measured in an anechoic chamber.

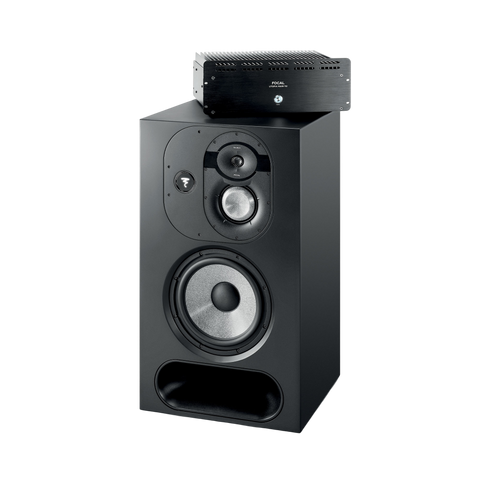

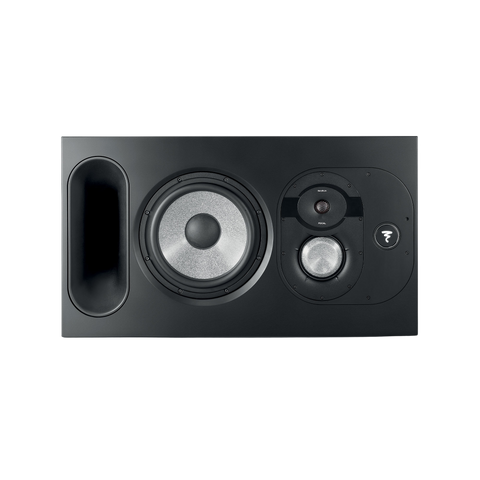

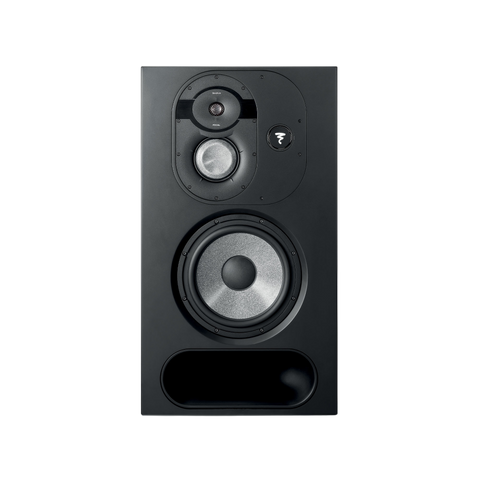

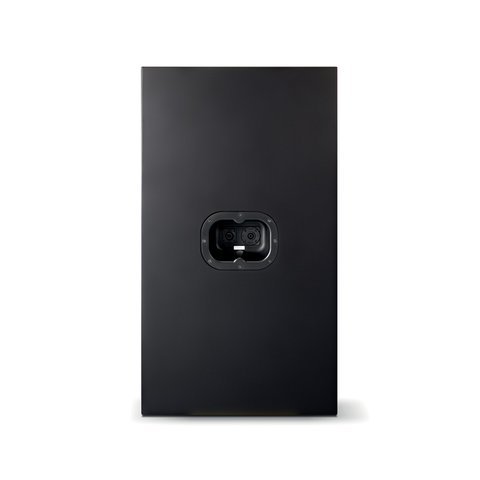

FOCAL UTOPIA MAIN 112
