Key Features

Musicians, Podcasters, Producers
8 EVO Mic Preamps
2 S/PDIF or 8-Channel ADAT I/O
2 Dedicated Headphone Outs, 8 Line Outs
USB Type-C Connection, 24-Bit / 96 kHz
Smartgain Automatic Gain Control
Audio Loopback for Streaming
BNC Wordclock Output
AC-Powered, Mac/Windows/Standalone

Studio-Quality Recordings with Eight EVO Mic Preamps

EVO 16 includes eight high-quality EVO Mic Preamps, available through the combo jacks on the front and rear of the unit. Backed by 25 years of engineering experience, the company's analog EVO preamp has been designed to deliver an accurate, clean, and true-to-source version of your audio (no matter what you're recording) with ultralow distortion, a noise-free signal, and a 58 dB gain range to easily power gain-hungry mics.

The EVO preamp technology not only offers the sonic advantages of an analog preamp but combines it with digitally controlled precision, giving you the ability to set your gain with pinpoint accuracy right down to the decibel. This also works great for stereo pairs, as you can link pairs of input channels.

Two JFET Instrument Inputs for Classic Tone and Modern Sound

EVO's harmonically rich JFET instrument input circuit is designed to replicate the input stage of a classic valve amplifier, providing an ideal sonic foundation before you hit your guitar sims. The two 1/4" instrument inputs on the front panel enable you to connect instruments such as electric guitars and basses. The instrument input is sometimes also known as a DI (Direct Injection) and provides a high-input impedance to get the best tone from your instruments.

High-Performance Converters for Clear, Sharp Audio Quality

Providing a massive 121 dB of dynamic range, EVO 16's high-performance converter technology makes sure you hear your audio accurately, helping you make creative decisionsconfidently, identify issues, and improve your recording and mixing game.

Low-Latency with Ultrafast USB, Speed Meets Reliability

With rock-solid driver performance, high-speed USB connection, and ultralow latency monitoring, EVO 16 delivers the reliability needed for complex recording and mixing workflows.

Smartgain, Your Own Assistant Engineer

Smartgain is a powerful feature which helps you get recording as quickly as possible. It is able to listen to all the activated inputs and automatically set gains for all eight channels within a matter of seconds. Simply set up your mics, hit Smartgain, and press record.

Motion UI User Interface—Information When and How You Need It

The Motion user interface (UI) has been designed to simplify the way you interact with your audio interface.

Ultraclear Screen

Every adjustment, every detail, every button press is beautifully displayed in real time on the backlit color LCD Screen, letting you navigate hardware features effortlessly, make changes on the fly, and take full control of your recording session. The screen intelligently displays information as you need it, offering a fully immersive experience without ever looking at your computer. IPS technology means information on the screen remains legible no matter your viewing angle.

One-Knob Centralized Control

Designed to keep your session in motion, One-Knob-Control lets you glide through EVO 16's hardware features from a single centralized point.

Channel Status

Pressing an input or output button momentarily displays the channel name, the levels and the functions activated for that specific channel. All the information you ever need in one place.

Metering

Keep an eye on your levels by quickly cycling through your inputs and outputs with EVO 16’s crystal-clear full-color metering.

Function Button

Thanks to the customizable F button, you can assign any of EVO 16's advanced monitoring controls to this programmable function button for a workflow just the way you like it.

Flexible Routing Options with Eight Line Outputs

Connect and listen to your mixes through multiple sets of speakers with EVO 16's eight line outputs. Alternatively use the extra line outputs to send audio to external outboard gear, such as compressors or FX units, or to headphone amps for distribution to your artists.

Two Dedicated Headphone Outputs

EVO 16's two dedicated headphone amps easily power headphones up to 600 ohms all while letting you enjoy detailed monitoring and playback, and plenty of volume.

Room for Expansion with Two Digital I/Os

Whether you're recording drums or taking on a full band, EVO 16's optical inputs and outputs have got you covered. Supporting both ADAT and S/PDIF, add up to 16 channels of mic preamps to your setup, giving you plenty of options for expanding your studio down the line—pairs great with any external mic preamp.

Advanced Monitor Control for the Keen Listener

In case you are switching between two sets of speakers using the ALT monitor feature, checking your mix in Mono or quickly communicating with your artist using Talkback—all features can be activated straight from EVO 16’s front panel. The best part is you get to customize which control is assigned to the hardware F-button.

Talkback for Flowing Communication

The F-button on the front panel can be used to activate Talkback, enabling you to stay in contact with an artist through their headphones. EVO 16's dedicated talkback technology lets you use any audio source connected to your computer such as a built-in or USB microphone as your talkback mic, freeing up valuable mic preamps for recording.

Powerful EVO Mixer

the EVO Mixer software, which provides further options for setting up and routing inputs and outputs and low-latency monitoring.

Audio Loop-Back for Podcasters, Content Creators

EVO 16 includes Loop-back channels that allow you to take audio from applications on your computer and feed it to another application—great for recording computer audio, video calls, or for setting up gaming streams. You can think of it as a virtual cable that runs from your app outputs back to other app inputs.

Wordclock Output

The EVO 16 includes a BNC Wordclock output, which allows you to clock multiple digital devices to the EVO 16's master clock and keep everything in sync.

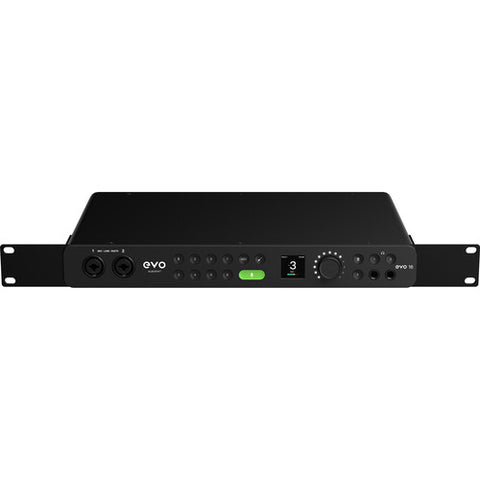

Portable—Stacked or Racked

At just over 1" wide with non-slip rubber feet, EVO 16 works perfectly whether on your desktop, under your laptop, or as a permanent fixture to your studio with optional rack ears. Upon registering the EVO, users can request the rack ears, which will be shipped to them directly, free of charge.

Included Software to Get You Started

EVO 16 comes bundled with a wide array of free software and plug-ins, giving you easy access to powerful creative tools straight away.

Cubase and Cubasis LE 3: music-creation software from Steinberg
Retrologue 2: classic analog synth from Steinberg
M-Tron Pro LE: digital emulation of the classic Mellotron
Torpedo Wall of Sound: highly realistic cab simulation from Two Notes
Produce Like A Pro: three free online courses plus 10% off your next course
Loopcloud: access to 2GB of professionally produced samples, as well as a 30-day free trial and 100 credits when registering an Audient product

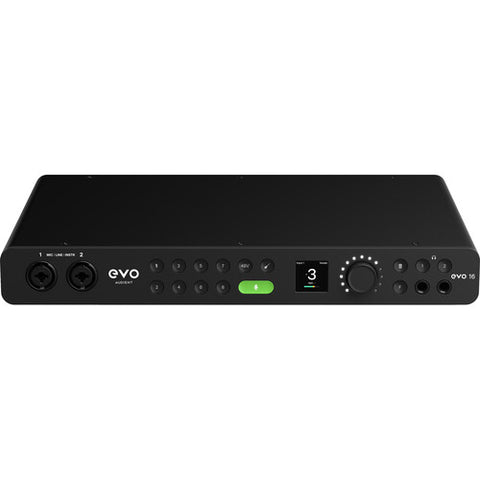

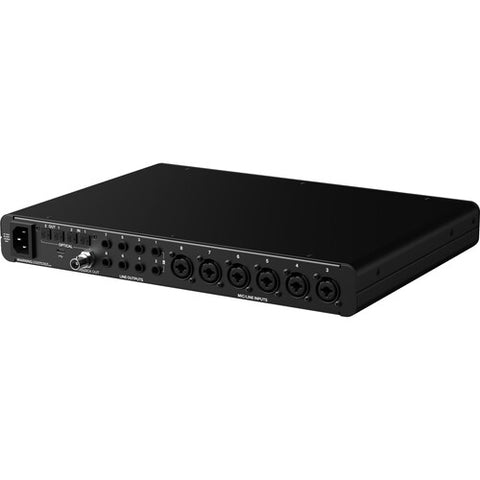

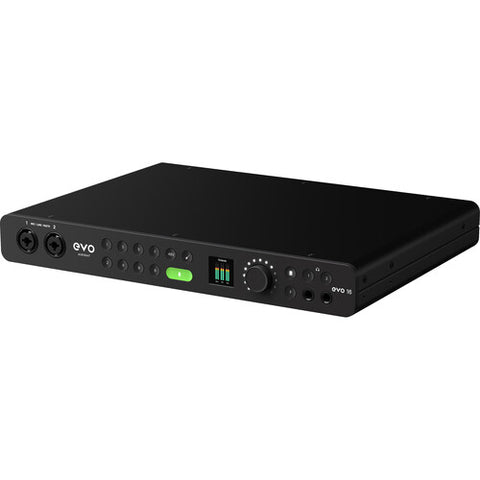

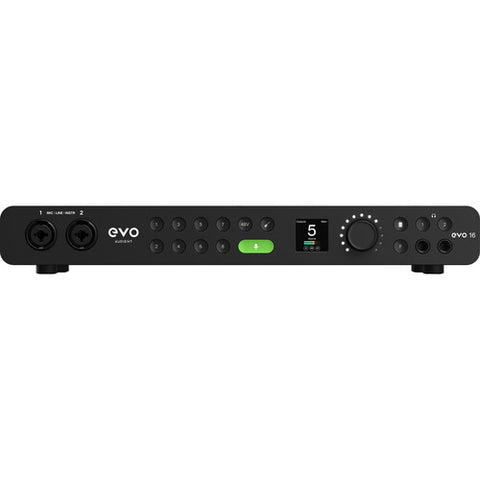

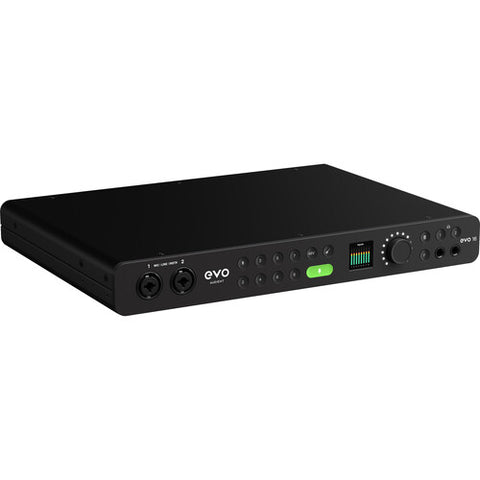

AUDIENT EVO16
