Max. external dimensions (W × D × H)	429.2 × 331.0 × 119.9 mm / 16.90" × 13.03" x 4.72"
Main unit weight	9.5 kg / 20.94 lbs.
Frequency response	20 Hz － 40 kHz (LINE)
S/N Ratio	107 dB (USB, DIGITAL IN) 88 dB (PHONO) 105 dB (LINE) 79 dB (MIC)
Power requirements	AC 110 V － 240 V, 50 Hz / 60 Hz
Power consumption	43 W
Accessories	Power cord Warranty (for some regions) Quick start guide Precautions for use
Compatible software	rekordbox Serato DJ Pro

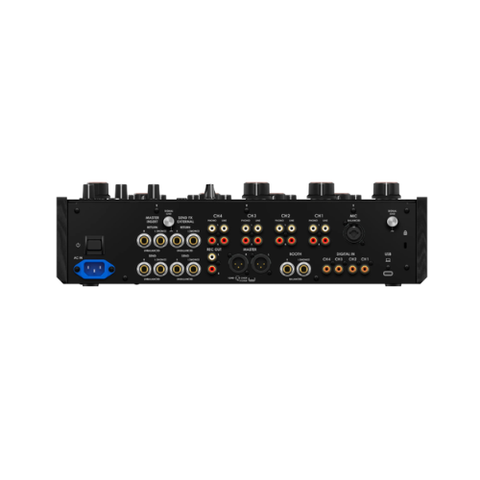

Terminals

Inputs	DIGITAL IN × 4 (coaxial) LINE × 4 (RCA) PHONO × 4 (RCA) MIC x 1 (XLR & 1/4" TRS jack)
Outputs	MASTER × 1 (XLR) BOOTH × 1 (1/4" TRS jack) REC × 1 (RCA) PHONES × 2 (1/4" stereo phone jack, 3.5 mm stereo mini jack)
USB	USB Type-C × 1
Others	SEND × 2 (1/4" TS jack) RETURN × 2 (1/4" TS jack)

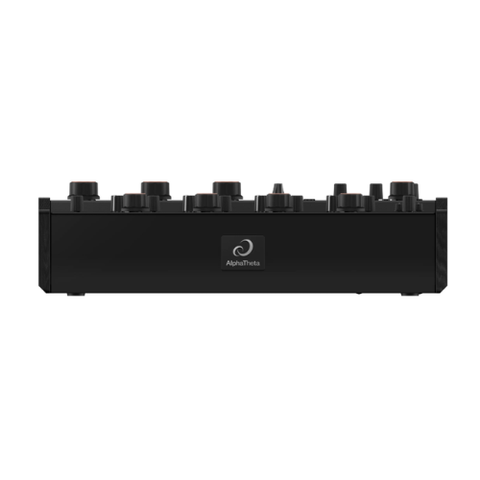

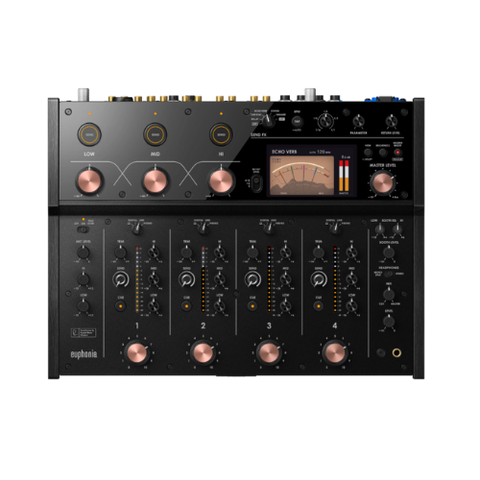

AlphaTheta Euphonia mixer
