Specifications:

Power requirements: AC 100 V – 240 V, 50 Hz / 60 Hz

Power consumption: DC 15 V, 3.0 A

Power consumption (OFF): 0.3 W

Max. external dimensions (W × D × H)340.0 × 213.3 × 72.8 mm / 13.4″ × 8.4″ × 2.9″

Main unit weight2.3 kg / 5.1 lbs.

Operating temperature+5 °C – +35 °C

Operating humidity5% – 85% (no condensation)

Audio:

Sampling rate96 kHz

A/D, D/A converter32 bit

Frequency response20 Hz – 40 kHz

S/N ratio (rated output, A-weighted)CONNECTION switch (MST): 115 dB
CONNECTION switch (SEND/RETURN): 114 dB
CONNECTION switch (CDJ): 108 dB

Total harmonic distortion (20 Hz – 20 kHz BW)0.0018 %

Standard input level / Standard output level CONNECTION switch (MST): +4 dBu / +4 dBu
CONNECTION switch (SEND/RETURN): -7.8 dBu / -7.8 dBu
CONNECTION switch (CDJ): -6 dBu / -12 dBu

Input impedance47 kΩ

Output impedance: 680 Ω or less

Rated output level / Load impedance CONNECTION switch (MST): 21 dBu / 10 kΩ
CONNECTION switch (SEND/RETURN): 12 dBu / 10 kΩ
CONNECTION switch (CDJ): 3 dBu / 10 kΩ

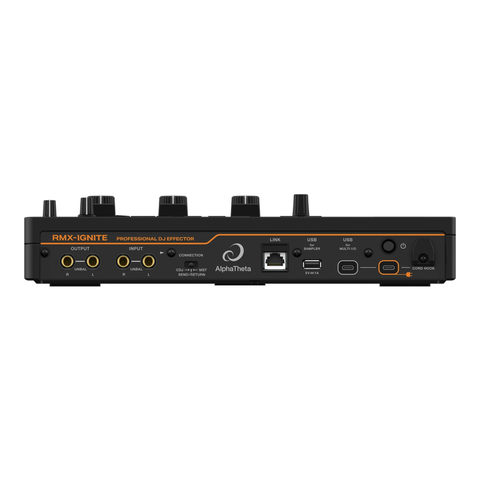

Input/output terminals:

Input1/4″ TS jack × 1

Output1/4″ TS jack × 1

USB Type-A (for SAMPLER)1 set (Power supply: 5 V/1 A or less)

USB Type-C (for MULTI I/O, AC adapter)2 sets

LINKLAN (100BASE-TX) × 1

The specifications and design of this product are subject to change without notice.

Supported file format:

WAV Bit depth: 16 bit / 24 bit
Sampling frequency: 44.1 kHz / 48 kHz / 88.2 kHz / 96 kHz

AIFF Bit depth: 16 bit / 24 bit
Sampling frequency: 44.1 kHz / 48 kHz / 88.2 kHz / 96 kHz

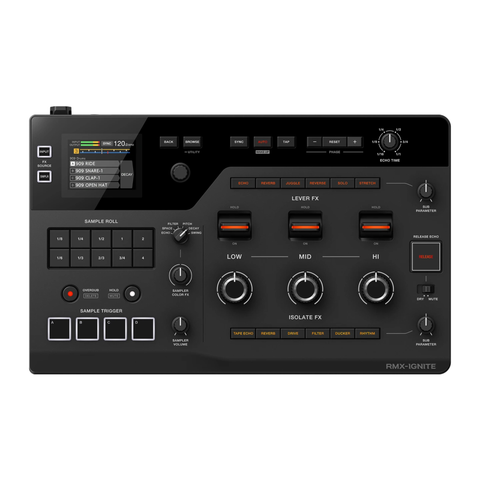

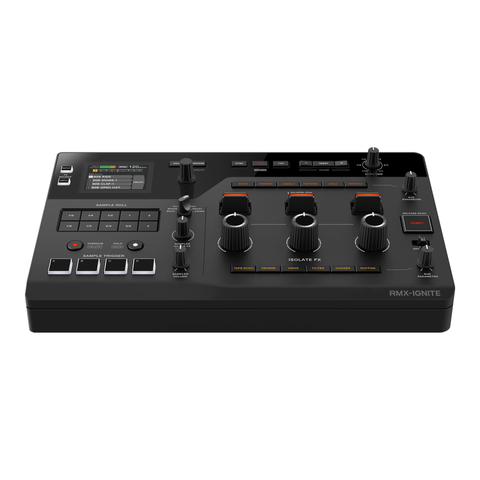

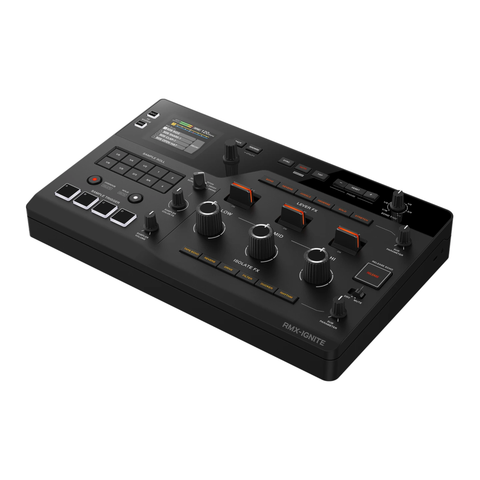

Alpha Theta RMX-Ignite
